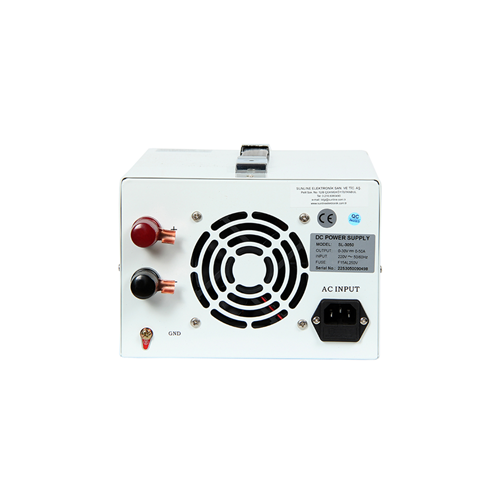

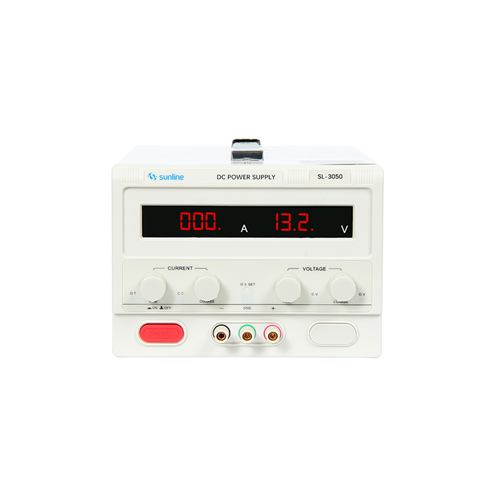

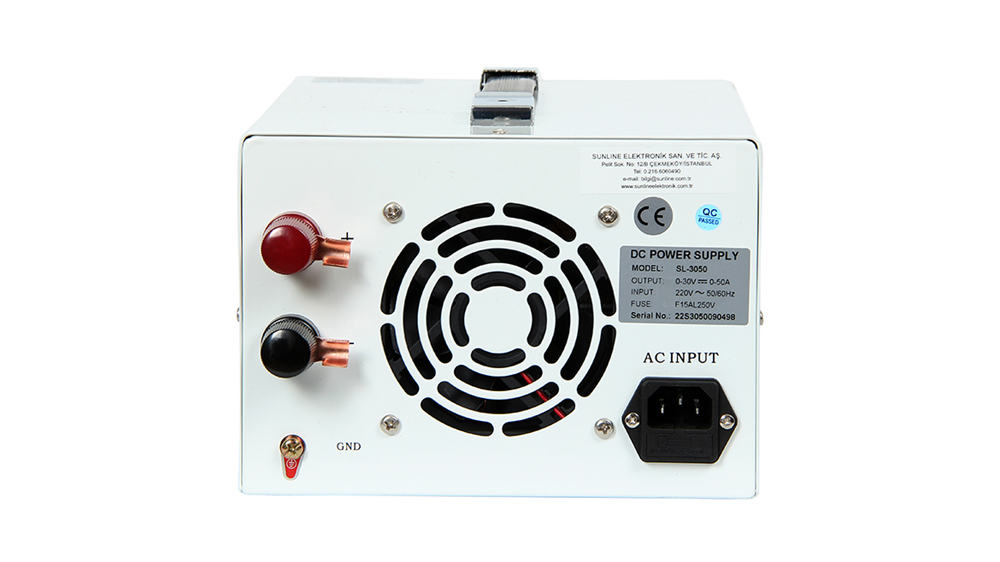

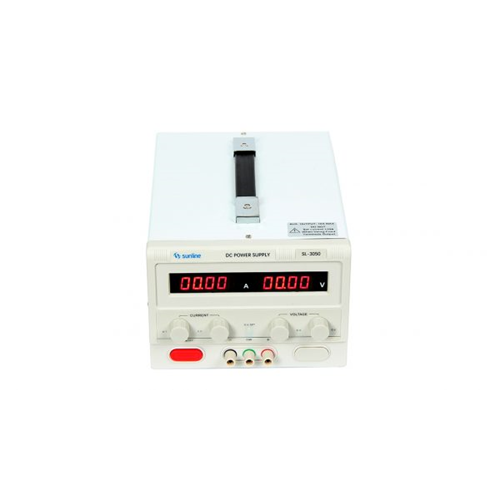

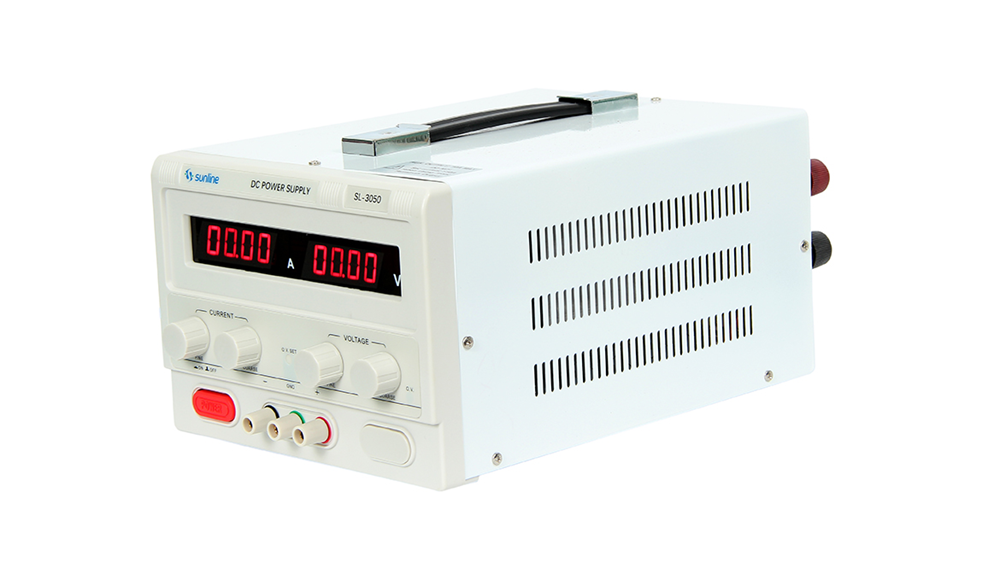

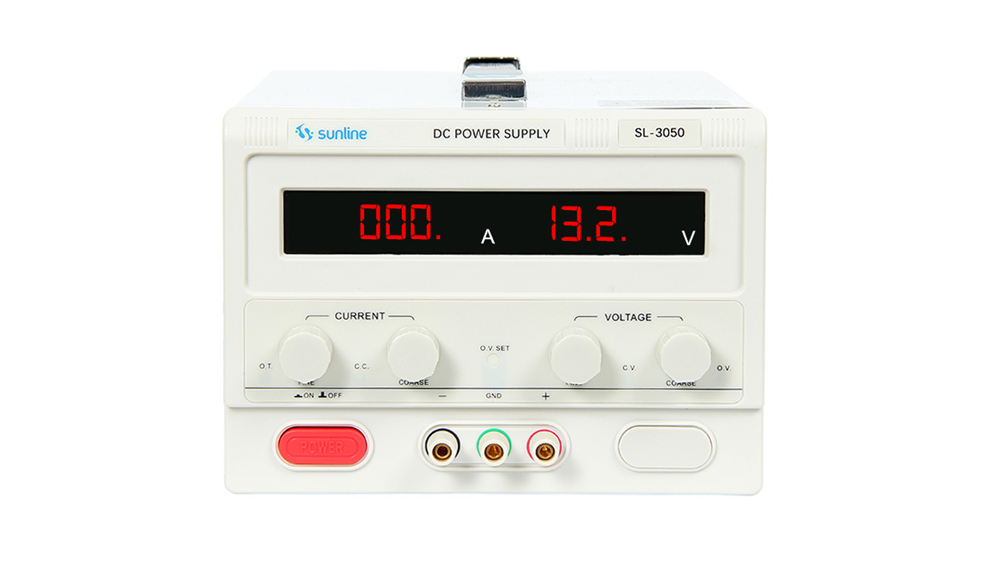

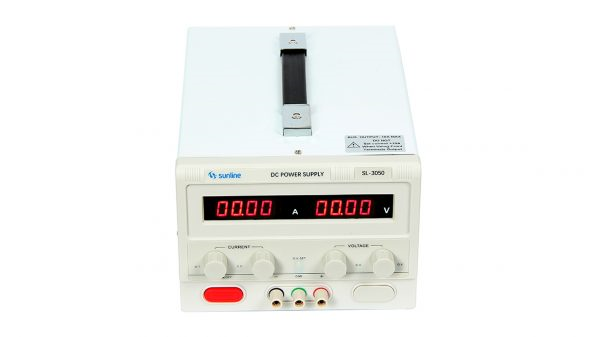

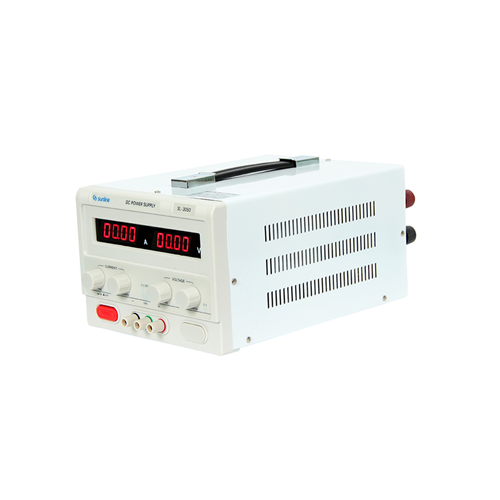

SL 3050S DC 30V 50A Güç kaynağı

Çıkış gücü

1500W

Çalışma Türü

PWM

Çıkış

Çıkış voltajı

0-30V

Çıkış Akımı

0-50A

O.V.P. range

DC 1~100% Değerlenmiş Çıkış Gücü

O.C.P. range

DC fixed 105% Maksimum Çıkış Gücü

Hat regulation

CV≤0.2% +2 Ekran

CC≤0.5% +2 Ekran

Yük regulation

≤0.5% +2 Ekran

Ripple & Noise

≤1% rms Tam Ölçü

Display

Voltmeter

4 Hane LED Ekran

Ammeter

4 Hane LED Ekran

Voltage resolution

0.000-9.999V; 00.00-99.99V; 000.0-999.9V

Current resolution

0.000-9.999A; 00.00-99.99A; 000.0-999.9A

Accuracy

±(1% FS+1 Ekran)

Optional functions

Display meter

4 1/2 Hane LED Ekran (Max. Ekran 19999)

Output terminal

On front panel; or on rear panel; or on both front and rear panels

Output ON/OFF

Front panel switch

Terminal block or Wires on rear panel for remote control

General

Protection

Over voltage, over current, over temperature and over load protections

Operating environment

0°C~40°C, <80%RH

Storage environment

-10°C ~70°C, <80%RH

Power source

AC110V/220V±10%, 50/60Hz

Input module

Power socket or terminal block

Dimension (WxHxD)

200x150x285mm (M chassis, 200W~1250W)

260x160x380mm (L chassis, 500W~2500W)

260x160x440mm (XL chassis, 2250W~6kW)
